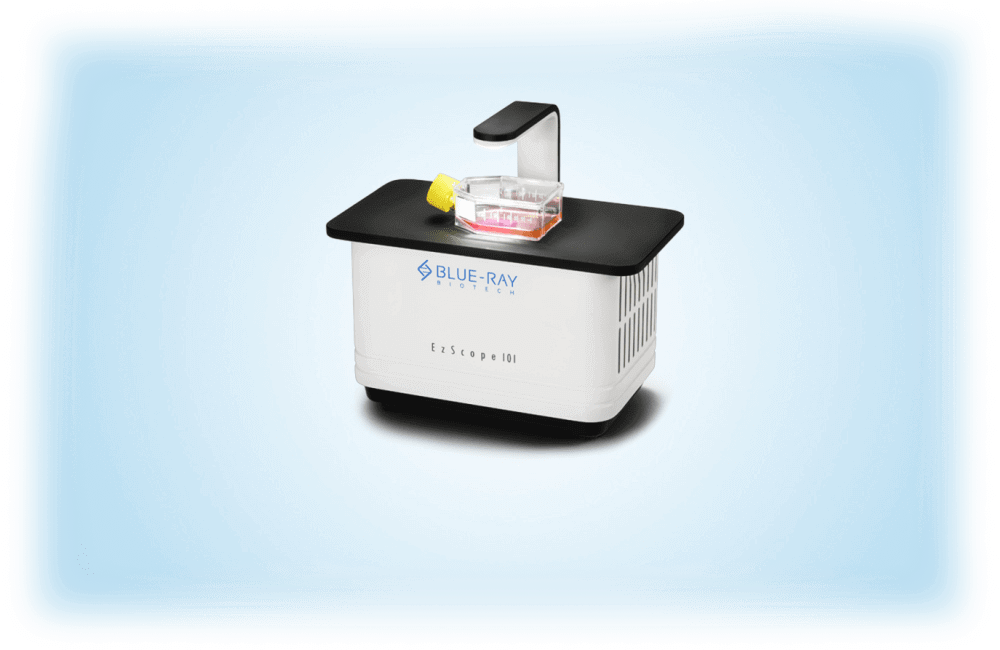

EzScope 101 Live Cell Imaging System

EzScope 101 is a dedicated live cell imaging system that helps to streamline your research workflow with improved efficiency and productivity, no more hassles to remove cells from incubator for observation. EzScope 101 brings 24/7 measurements under precisely controlled conditions in a non-perturbing environment. You can observe the images anytime with walk-away convenience. Up to four samples can be monitoring simultaneously in a same incubator.

  • Request for Quote        More Info
  • Introduction

    EzScope 101 enables microscope-in-incubator to live view for real-time cell monitoring, migration, growth, and invasion, plus a wide range of phenotypic cell-based assays.

    Sample: Human Ovarian Cancer Cell (HM-4)
    Description: The time-lapse video shows the formation of a 3D spheroid by using a self-made suspended tumorspheroid chip.
    Similar Applications: Cell migration, wound healing, cell confluence studies

    Sample: Cardiac Muscle cell
    Description: The time-lapse video clip of differentiated cardiac muscle stem cells reveals a beating feature.
    Similar Applications: All kind of stem cell related research

    Sample: Cardiac Muscle cell
    Description: The effect of different gelatin concentrations on cell growth.
    Similar Applications: All kind of stem cell related research

    Incubator Live View
    Designed to be used inside the incubator, without the need to remove your cells from incubator to enhance culture quality control.

    Minimizes Experimental Variations
    Up to four units of EzScope can to be setup in the same incubator and controlled by one computer. This enables the monitoring of samples simultaneously, reduces errors caused by environment variations.

    Exceptional Image Quality
    Adopts high contract brightfield optical configuration, coupled with precise motorized focusing, and two interchangeable magnifying objective lenses.

    Remote Monitoring of Experiment
    Allows flexible remote monitoring the assay via Windows-based remote desktop software.

    Easy Image Editor
    Captures and edits images easily with EzCapture software:
    ● Live preview for up to 4 units of EzScope
    ● Capture single image or time-lapse series
    ● Flatfielding correction for even brightfield background
    ● Time-lapse video output
    ● Spatial calibration
    ● Measure and convergence analysis



    OpticsBrightfield (transmitted) with white LED
    Objective Lens10x, 20x (optional)
    Camera1.3 MP CMOS Sensor
    Image Resolution1280 x 1024 pixels
    Export FormatsTiff (image), AVI (video)
    SoftwareEzCapture with snapshot, time-lapse and confluence, etc
    Field of View2.6 x 2.0 mm (10x objective)
    Resolution2 µm/pixel (10x objective), 1 µm/pixel (20x objective)
    Live View Frame RateUp to 8 frames/second


    Manual XY stage (optional) SBS footprint
    Labware Holders (optional) 35 mm culture dish and slide, 60 mm culture dish and slide, T-25 culture flask, T-75 culture flask


    Computer Requirements i3 CPU with 4 GB RAM, Windows 10 OS, i5 CPU with 8 GB RAM, Windows 10 OS for multiple units connection
    Connectivity USB 2.0/3.0, up to 4 units
    Power Adaptor Input: AC 100-240 V, 50/60 Hz; Output: DC 5 V, 2 A
    Dimensions (W x D x H) 225 x 131 x 205 mm
    Weight 2.0 kg
    Operating Conditions 0°C – 42°C, 5% – 95% RH non-condensing

    CE, RoHS

    * Specifications are subject to change without prior notice.
