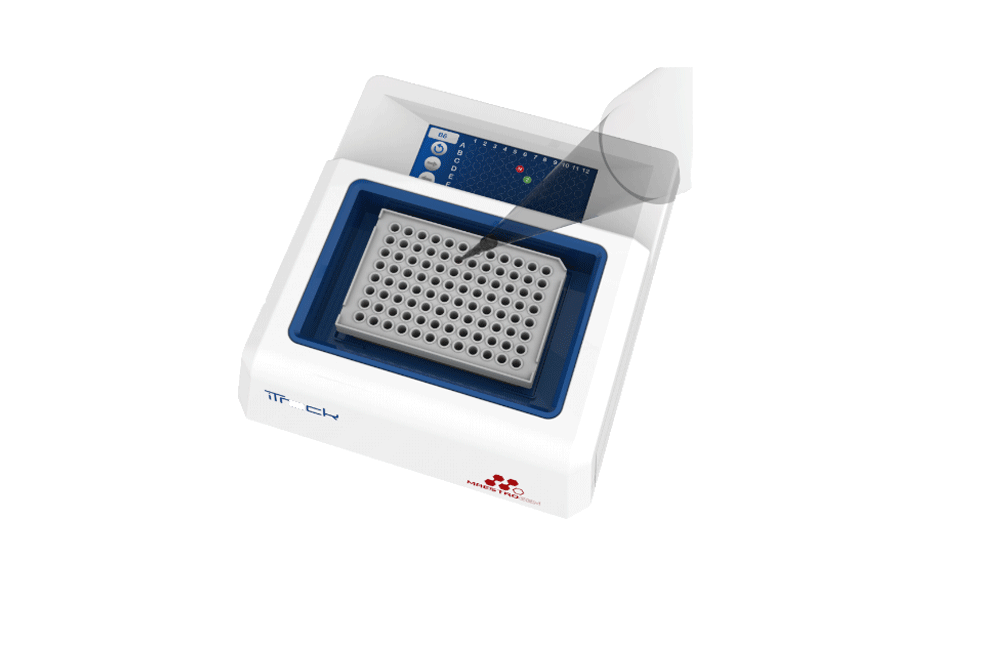

iTrack

iTrack is a recording system for liquid handling. It can automatically keep tracking and recording your sample or solution preparation steps. Biological experiments increasingly involve large numbers of samples, making liquid handling in these experiments a challenge for investigators. With iTrack, investigators won’t forget which well has been already loaded. It is compatible with 96, 384-well microplate, and works with multichannel pipettes.

  • Yêu Cầu Báo Giá
  • Giới Thiệu

     iTrack sensors detect pipetting locations automatically
     No need to program pipetting patterns or import protocols.
     (However, if you need to set up your own protocol and follow it, it’s also avaiable.)
     No need to press any button after every pipetting step
     Two sensor scanning layers:
     Higher layer for 96-well microplates & tubes
     Lower layer for 384-well microplates

    Mô Tả

    Items Specifications
    Compatible Pipette Single-, 8-, & 12-channel (fixed space)
    Compatible Tip 0.1 – 1,000 µL
    Compatible Microplate / Tube 96-Well Microplate (height < 23.5 mm)
    (PCR, ELISA, storage…) 384-Well Microplate (height < 11 mm)
    8-tube / 12-tube strips
    Control System Android Tablet
    CPU & RAM Quad-Core A9 1.6GHZ, 1G DDR3 RAM
    Storage 8 GB NAND Flash, MicroSD supports 64GB
    Ports MicroSD, MicroUSB, power, headset
    Display 8” Capacitive Touch Screen, 1,024 x 768 pixel
    Cameras Front / 2MP Back
    Operation Voltage 100-240V / 0.3A (Tablet)
    Operation Power Consumption 5V / 0.5A
    Battery 3.7V – 3500mAh
    Scan Light Source IR Light-Emitting Diode
    >Scan Frequency 200 – 500 Hz
    Detection Time 0.5 – 3 sec.
    Size 255mm x 230mm x 54mm (10” x 9” x 2”)
    Weight >1.9 Kg (4.1 lb)
